TG550

• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1968–1970

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 27506

• Picture
• Schematics

Previous Next

Previous Next

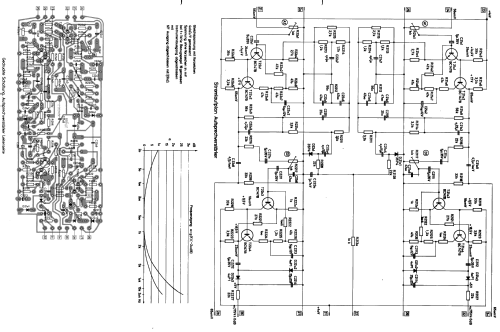

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 33

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: TG550 - Braun; Frankfurt

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 420 x 170 x 320 mm / 16.5 x 6.7 x 12.6 inch

• Notes
• Zweispur-Stereo Aufnahme/Wiedergabe und zusätzlich Vierspur-Wiedergabe; Bandgeschwindigkeiten: 9,5/19 cm/s; Spulen-Ø 18 cm.

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Price in first year of sale
• 2,400.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1968/1969
