• Country
• Germany

• Manufacturer / Brand
• Bruns; Hamburg

• Year
• 1974/1975

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 117035

• Number of Tubes
• 7

• Valves / Tubes

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Wooden case

• from Radiomuseum.org

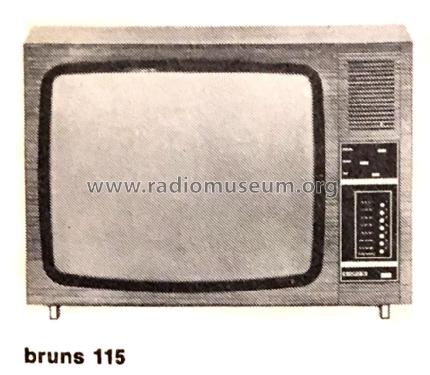

• Model: 115 - Bruns; Hamburg

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 710 x 500 x 390 mm / 28 x 19.7 x 15.4 inch

• Notes
• Getrennte VHF- und UHF-Tuner mit Diodenabstimmung.

• Source of data

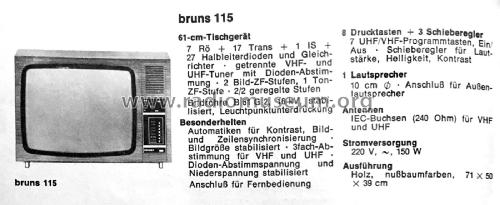

• Handbuch VDRG 1974/1975

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.

• Other Models

• Here you find 120 models, 113 with images and 35 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Bruns; Hamburg
