• Country
• Germany

• Manufacturer / Brand
• Bruns; Hamburg

• Year
• 1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 203187

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 12 cm = 4.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Apart de Luxe 6460 - Bruns; Hamburg

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 650 x 170 x 150 mm / 25.6 x 6.7 x 5.9 inch

• Notes

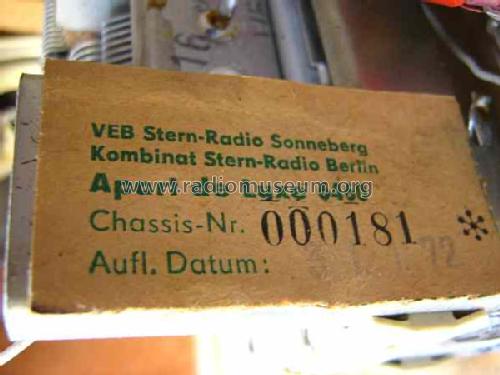

• Apard de Luxe 6460, AFC-Schalter, DIN-Buchse für Tonquellen-Eingang, Ext.-Lautsprecher-Anschluß, Exportgerät für die BRD von Sternradio Sonneberg auf Basis des Apart 6400.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
