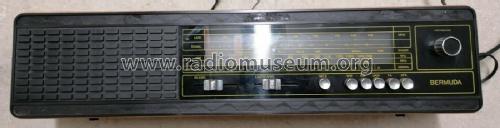

Bermuda Sonneberg
Bruns; Hamburg
- Country
- Germany
- Manufacturer / Brand
- Bruns; Hamburg
- Year
- 1980 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 335439
ebay_334293618919, luddanlud
ebay_3342933618919, luddanlud
Messe-Prospekt außen
Messeprospekt innen
- Number of Transistors
- 4
- Main principle
- Superheterodyne (common); ZF/IF 10700/455 kHz; Export model
- Tuned circuits
- 5 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Bermuda [Sonneberg] - Bruns; Hamburg
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 530 x 130 x 160 mm / 20.9 x 5.1 x 6.3 inch
- Notes
-
Hersteller: Stern-Radio Sonneberg für BRUNS, Exportmodell des Saturn ohne Langwelle.
Später auch für BRUNS hergestellt von Hochfrequenz-Werk Meuselwitz und
Antennenwerke Bad Blankenburg.
- Net weight (2.2 lb = 1 kg)
- 3.6 kg / 7 lb 14.9 oz (7.93 lb)
- Literature/Schematics (1)
- Die Geschichte der Rundfunkindustrie der DDR Band 2 1968 - 1990
- Author
- Model page created by Martin Steyer. See "Data change" for further contributors.
