Super 6341-67

• Country
• Germany

• Manufacturer / Brand
• Bruns; Hamburg

• Year
• 1965–1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75833

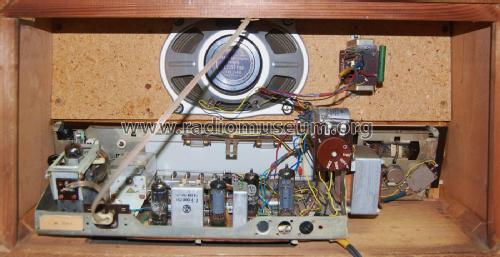

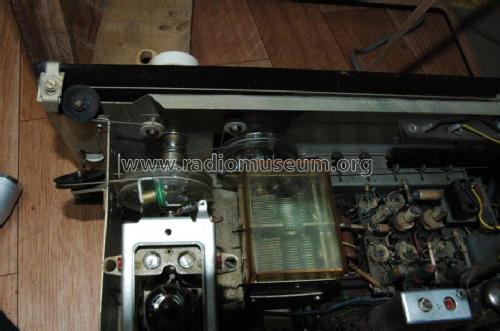

• Picture

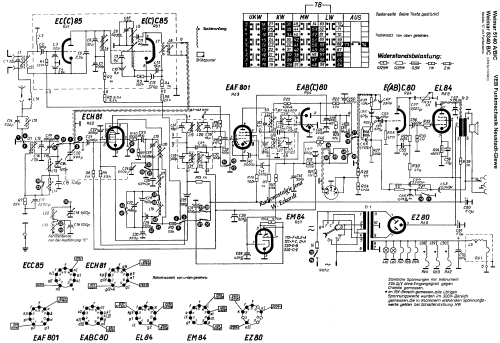

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 or EAF801 EM84 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super 6341-67 - Bruns; Hamburg

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 600 x 330 x 220 mm / 23.6 x 13 x 8.7 inch

• Notes
• Wurde auch vom Quelle-Versand vertrieben. Entspricht der Exportausführung "Weimar 5340C" von Funkmechanik Neustadt/Glewe (siehe dort).

• Net weight (2.2 lb = 1 kg)
• 8.4 kg / 18 lb 8 oz (18.502 lb)

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Patrice Zeissloff. See "Data change" for further contributors.
