• Country
• Germany

• Manufacturer / Brand
• Bruns; Hamburg

• Year
• 1982 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 147545

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 4 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

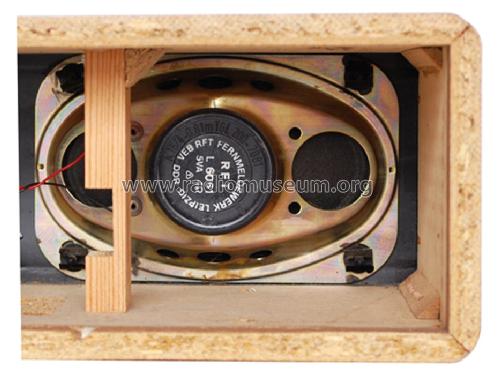

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Saturn - Bruns; Hamburg

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 530 x 130 x 160 mm / 20.9 x 5.1 x 6.3 inch

• Notes
• 4-Band-Monoradio mit AFC, 2 Piezofilter, 2 IC. 2 Schieberegler für Klang und Lautstärke, eingebaute Ferritantenne. Anschlüsse für TA/TB, Außenantenne, Zweitlautsprecher. Gehäuseausführung: Holz Nussbaumdekor in Softline (abgerundete Ecken), Front schwarz Kunststoff.
  Exportausführung für BRUNS von Stern-Radio Sonneberg.

• Net weight (2.2 lb = 1 kg)
• 3.6 kg / 7 lb 14.9 oz (7.93 lb)

• Source of data

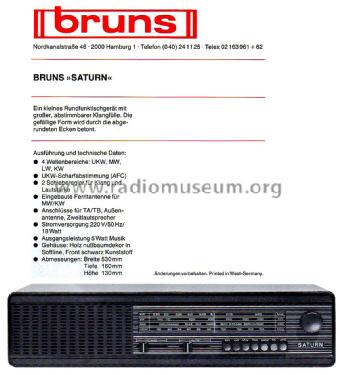

• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
