Minitrans CD TP1
Calazans Duarte, Marinha Grande
- Country
- Portugal
- Manufacturer / Brand
- Calazans Duarte, Marinha Grande
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 172429
Manufacturer documentation
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

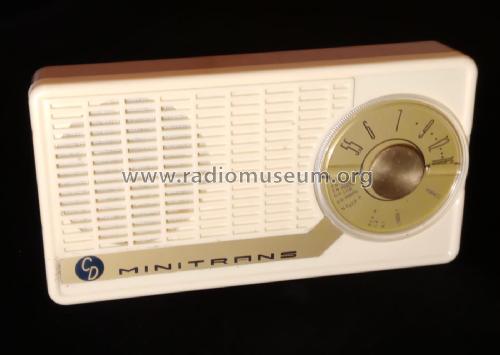

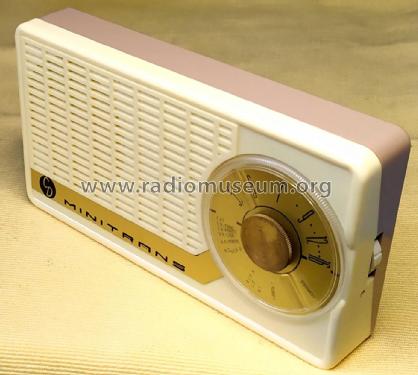

- Model: Minitrans CD TP1 - Calazans Duarte, Marinha
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 155 x 80 x 27 mm / 6.1 x 3.1 x 1.1 inch
- Net weight (2.2 lb = 1 kg)
- 0.250 kg / 0 lb 8.8 oz (0.551 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Antonio Barros-Regada. See "Data change" for further contributors.
- Other Models
-
Here you find 6 models, 6 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Calazans Duarte, Marinha Grande
Collections
The model Minitrans CD is part of the collections of the following members.
Forum contributions about this model: Calazans Duarte,: Minitrans CD TP1
Threads: 1 | Posts: 5
What battery type and number of cells were used in this radio?
The battery compartment floor shows just two batteries engraved on the plastic cabinet. The useful space to install batteries is around 148 mm in length and 21 mm in diameter.
If the radio runs on 6V, then it would make sense to use four 1.5V dry cells even considering the alleged manufacturing date of ealry 60's. But four dry cells do not fit inside no matter what model is chosen.
So probably two uncommon sized dry cells were chosen for this model. Could it be something like this one?
- 3V "Duplex" / "Ever Ready No. 8" / "2R10" sized as 21.8 × 74.6 mm
Jose Mesquita, 07.Jun.23
