10 with "10-12C" changer
Capehart Corp.; Fort Wayne, IN - see also Farnsworth
- País
- Estados Unidos
- Fabricante / Marca
- Capehart Corp.; Fort Wayne, IN - see also Farnsworth
- Año
- 1931/1932
- Categoría
- Registrador o reproductor de sonido o visual
- Radiomuseum.org ID
- 34986
Lafayette Catalog 1932
Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.
- Gama de ondas
- - no hay
- Especialidades
- Tocadiscos con cambiador autom.
- Tensión de funcionamiento
- Red: Corriente alterna (CA, Inglés = AC) / 117 Volt
- Altavoz
- - Este modelo usa amplificador externo de B.F.
- Material
- Metálico
- de Radiomuseum.org
- Modelo: 10 with "10-12C" changer - Capehart Corp.; Fort Wayne, IN
- Forma
- Chasis (tambien de autoradio)
- Anotaciones
-

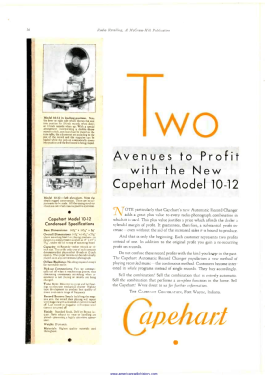

See also at Rider's where you find a "model 10" and a "model 12C" instead of a model "10-12C" as given in this Lafayette catalog 1932. We show both entries to be complete in any case and to describe the problem. The Automatic Record Changer model 10-12 was featured on page 2 in "Presto-Times" February 1931 - with sizes 14.25 x 14.25 x 7.125".
The inexpensive and simple drop-type changer "10-12" was introduced by Capehart in 1931. Baumbach page 17 shows 4 different model cabinets as samples for this drop-type record changer: Model 15, a 7 tube TRF for $ 225, model 15S as 8-tube Superhet for $ 235, both with the same console cabinet of Walnut and Lacewood veneers. Model 1000 for $ 122.50 (plays through radio), Walnut and Lacewood veneers, cabinet 24" x 28" x 17.5" (WHD), no receiver, only changer in cabinet. Coin operated Model Junior 5 (sometimes simply called model 5) or without coin operation but otherwise the same is model 6. At last model 20 with the 7 tube TRF for $ 262.50 or model 20S with the 8-tube Superhet in the same cabinet for $ 272.50, Walnut and Maple veneers, size 24" x 28" x 17.5 (WHD).
About different changers of different types and brands see this interesting outbound link. Here is a video from Robert Baumbach for a turn-over changer.
- Ext. procedencia de los datos
- Ernst Erb
- Procedencia de los datos
- Radio Collector`s Guide 1921-1932
- Referencia esquema
- Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
- Documentación / Esquemas (1)
- The Incomparable Capehart (Baumbach page 17, Rider's Capehart 2-1 to 2-4.)
