Poste à 4 lampes intérieures
Carton & Fils, G. (GC&F, G.C.&F.); Gisors (Eure)
- Country
- France
- Manufacturer / Brand
- Carton & Fils, G. (GC&F, G.C.&F.); Gisors (Eure)
- Year
- 1926/1927 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 72041
- Number of Tubes
- 4
- Main principle
- TRF with regeneration
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 4 & 150 & 4.5 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Poste à 4 lampes intérieures - Carton & Fils, G. GC&F, G.C.&F
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 390 x 210 x 240 mm / 15.4 x 8.3 x 9.4 inch
- Notes
-

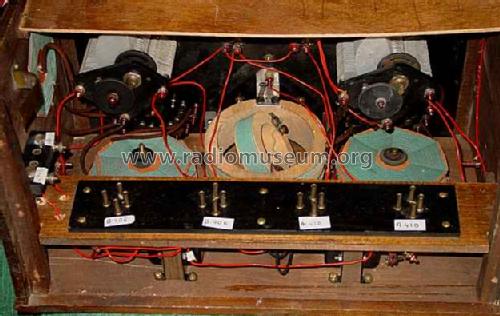

Poste à 4 lampes : 2HF + 2BF. Montage resonnance à réaction. Pile plâte de polarisation 4.5 V.
Ebenisterie en chêne, façade ebonite.
- Author
- Model page created by Jean Claude Pigeon † 2008. See "Data change" for further contributors.
