- Country
- France
- Manufacturer / Brand
- Constable, Constable-Célestion, Soc. Commerciale de Spécialités Électriques; Paris, Neuilly
- Year
- 1930 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 263632
- Number of Tubes
- 3
- Valves / Tubes
- Main principle
- TRF with regeneration
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 4 & 60 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

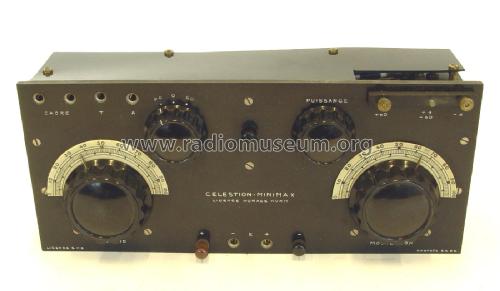

- Model: Célestion-Minimax - Constable, Constable-Célestion
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 270 x 110 x 240 mm / 10.6 x 4.3 x 9.4 inch
- Notes
-
Valise gainé cuir, équipé du châssis Z3. Cadre-couvercle détachable.
Existe aussi en version superhétérodyne avec 4 lampes.Les dimensions peuvent différer. Poids sans piles 3.6 kg.
Licence Horace Hurm. Voir aussi modèle vendu par Hurm Célestion-Minimax.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Price in first year of sale
- 1,800.00 FRF
- Mentioned in

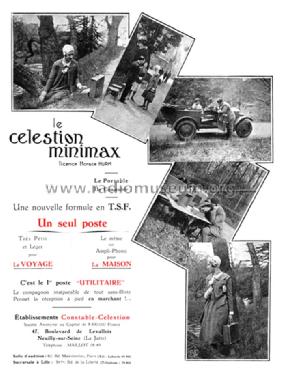

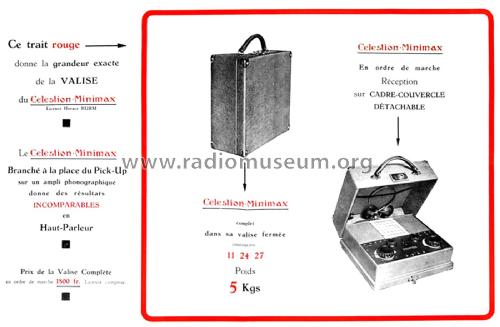

- -- Original prospect or advert
- Literature/Schematics (2)
- Le Guide du Collectionneur TSF Biraud/Foster, Vol. I (page 126)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
- Other Models
-
Here you find 2 models, 2 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
