Lampemetre - Pentemetre 752
Centrad; Annecy
- Country
- France
- Manufacturer / Brand
- Centrad; Annecy
- Year
- 1957
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 110183
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Lampemetre - Pentemetre 752 - Centrad; Annecy
- Shape
- Tablemodel, low profile (big size).
- Notes

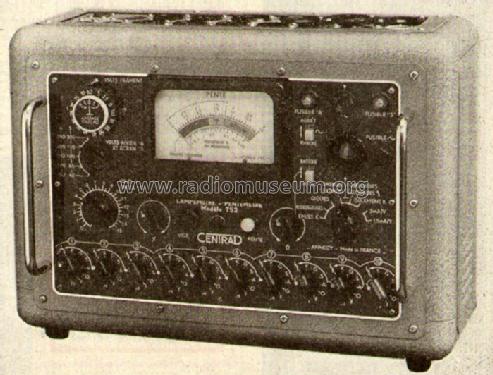

- Tube tester, sockets on top.
- Source of data
- -- Collector info (Sammler)
- Literature/Schematics (1)
- Radio Constructeur et Dépanneur mai 1957
Mode D'Emploi Centrad Lampemetre - Pentemtere 752 (supplied by Timoleon Mourtzopoulos) | 2615 KB | |

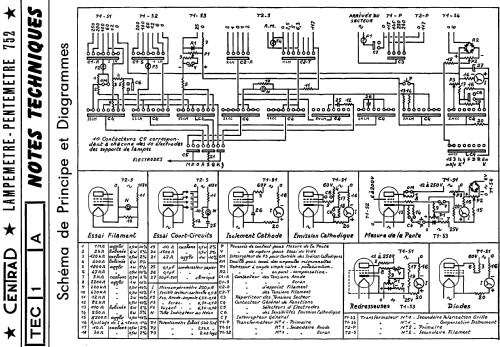

Notes Techniques Centrad Lampemetre - Pentemetre 752 (supplied by Timoleon Mourtzopoulos) | 1680 KB |
