• Country
• France

• Manufacturer / Brand
• Central-Radio; Paris

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 136965

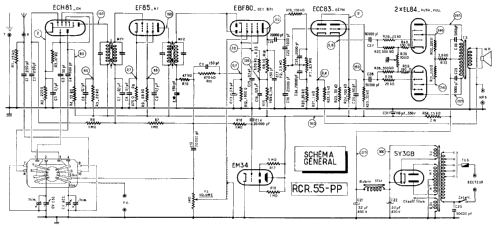

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECH81 EF85 EBF80 ECC83 EM34 EL84 EL84 5Y3GB

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 145; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 24 cm = 9.4 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: RCR 55 PP - Central-Radio; Paris

• Notes
• Push-Pull d'EL84, 2 OC dont une bande étalée

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
