• Country
• Sweden

• Manufacturer / Brand
• Centrum-Radio, Gylling & Co.; Stockholm

• Year
• 1946 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 198653

• • Brand: Gylling

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6J5 6SG7 6K7GT 6Q7GT 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org

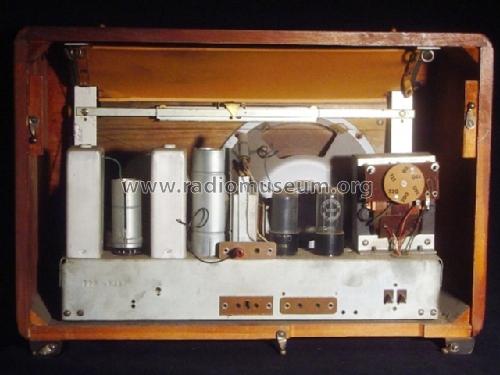

• Model: 762V Typ 115 - Centrum-Radio, Gylling & Co.;

• Shape
• Tablemodel, low profile (big size).

• Author
• Model page created by Paulo Figueiredo. See "Data change" for further contributors.
