- Country
- France
- Manufacturer / Brand
- Martial, CERT (C.E.R.T.) - Comptoir d'Études Radio-Techniques; Paris
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 144119
guter Zustand, Funktion offen
guter Zustand
Zustand gut

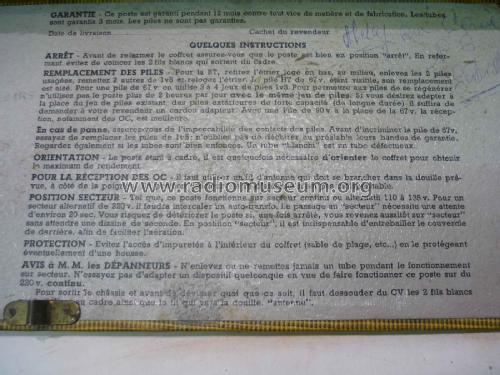

Anleitung
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Line / Batteries (any type) / AC/DC: 110-135 / 2 x 1.5 & 67.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: MP602 - Martial, CERT C.E.R.T. -
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 240 x 170 x 120 mm / 9.4 x 6.7 x 4.7 inch
- Notes
-
3 gammes d'ondes : OC de 16.3 à 5.95 MHz, PO de 1520 à 522 kHz, GO de 300 à 150 kHz.

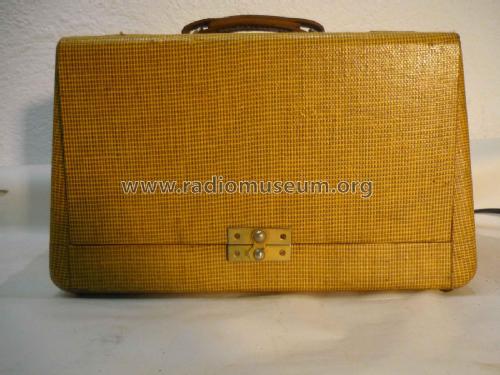

Coffret bois gainé.
- Price in first year of sale
- 23,500.00 FRF
- Literature/Schematics (1)
- Radio Constructeur et Dépanneur (No. 73, Nov. 1951 / Guide des récepteurs 51-52)
- Author
- Model page created by Raynal Aufils. See "Data change" for further contributors.
