- Country
- France
- Manufacturer / Brand
- Westinghouse, Compagnie des Freins et Signaux (CFS, CDSW, Oxymétal); Paris, Sevran, LeMans
- Year
- 1955 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 217678
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Other Recorder/Player
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.5 cm = 3.7 inch
- Power out
- 2 W (undistorted)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

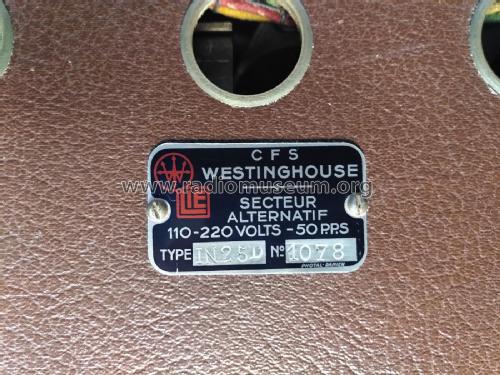

- Model: Dictawest IN 25 D - Westinghouse, Compagnie des
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 350 x 340 x 190 mm / 13.8 x 13.4 x 7.5 inch
- Notes
-
Engeristreur-reproducteur de disques magnétiques "Sonocolor" de 30 cm de diamètre.
Vitesse 15 t/min, capacité 12 min par face.
- Net weight (2.2 lb = 1 kg)
- 10.8 kg / 23 lb 12.6 oz (23.789 lb)
