• Country
• Sweden

• Manufacturer / Brand
• Champion Radio AB; Stockholm

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 224324

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1T4 1S5 3S4

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 1.5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

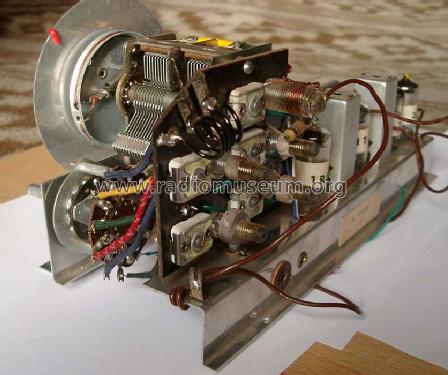

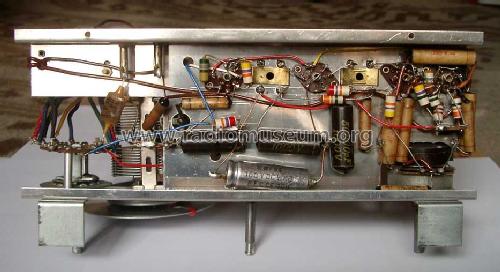

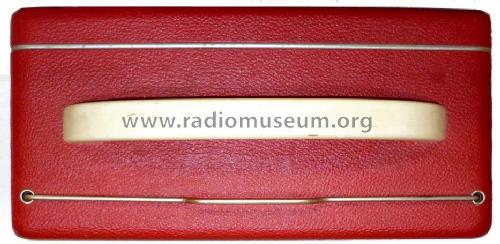

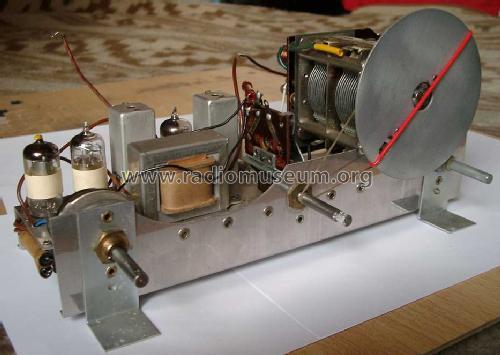

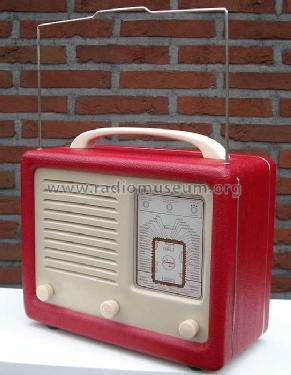

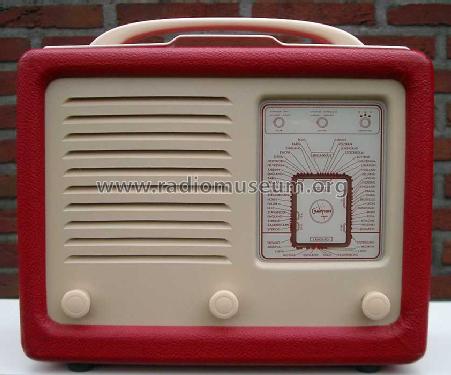

• Model: C-449 - Champion Radio AB; Stockholm

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 230 x 150 mm / 11.4 x 9.1 x 5.9 inch

• Notes

• SW is 49m 41m 31m 25m 19m & 16m on one band.

  Aerial and earth sockets on rear.

• Author
• Model page created by Michael Watterson. See "Data change" for further contributors.
