• Country
• France

• Manufacturer / Brand
• Chauvin & Arnoux; Paris

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 355605

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 12AT7A 12AX7A

• Number of Transistors

• Semiconductors
• BP_Soral

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 200; 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

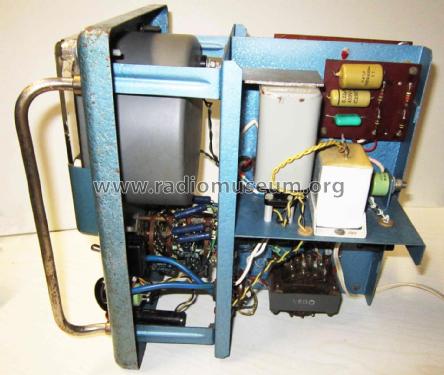

• Model: Millivoltmètre Amplificateur / Microampèremètre VE-5-A - Chauvin & Arnoux; Paris

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 190 x 290 x 310 mm / 7.5 x 11.4 x 12.2 inch

• Notes

• DC Millivoltmètre Amplificateur / Microampèremètre.

  • Voltage: 1 mV  . . . 300 V (12 ranges) - impedance > 1 MΩ/V.
  • Current: 1 nA . . . 300 µA (12 ranges).

  Accuracy < 5% of the scale maximum,
  RF Measuring probe + accessories are in a compartment at the back.
  DC measuring is based on the principle of an electromechanical chopper unit.

• Net weight (2.2 lb = 1 kg)
• 7.9 kg / 17 lb 6.4 oz (17.401 lb)

• Author
• Model page created by Ludo Withofs. See "Data change" for further contributors.
