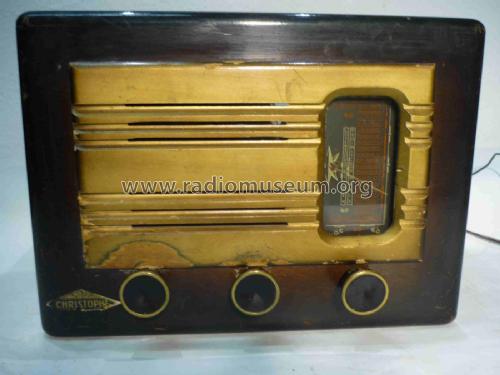

Inconnu - Unknown 1 Cadran Ravex No. 517 SPIR, Cond. 8050 Caire Bob 8046 SiS 470
Christophe; Nancy
- Country
- France
- Manufacturer / Brand
- Christophe; Nancy
- Year
- 1939 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 224185
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- unknown_ballast
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.6 cm = 5 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Inconnu - Unknown 1 Cadran Ravex No. 517 SPIR, Cond. 8050 Caire Bob 8046 SiS 470 - Christophe; Nancy
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 275 x 220 x 215 mm / 10.8 x 8.7 x 8.5 inch
- Notes
-
3 gammes d'ondes dont OC de 17 à 50 m.
Cadran Ravex No. 517, Bobinages SPIR, Condensateurs 8050, Bobinages Caire, Condensateurs 8046, SiS 470.
Régulatrice de type résistance à culot octal.Housse de transport 290 x 220 x 215 mm, poignée 50 mm, poids 0.9 kg.
Il est possible que TSF Chistophe n'est qu'un revendeur.
- Net weight (2.2 lb = 1 kg)
- 4.1 kg / 9 lb 0.5 oz (9.031 lb)
