Baby 54
Cibot Radio; Paris
- Country
- France
- Manufacturer / Brand
- Cibot Radio; Paris
- Year
- 1954/1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 150751
Photo J.H.Levy
Radio Plans 1954

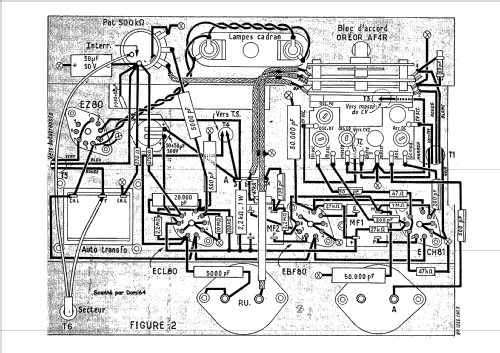

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 240 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Baby 54 - Cibot Radio; Paris
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 280 x 185 x 155 mm / 11 x 7.3 x 6.1 inch
- Notes
-
Cadre incorporé, 2 OC dont une bande étalée.
Prix en pièces détachées, avec coffret.
- Price in first year of sale
- 10,750.00 FRF
- Literature/Schematics (1)
- Radio Plans Nov. 1954
- Author
- Model page created by Raynal Aufils. See "Data change" for further contributors.
