• Country
• France

• Manufacturer / Brand
• Cibot Radio; Paris

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 132088

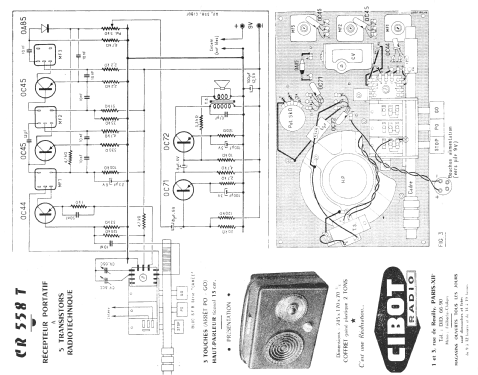

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• OC44 OC45 OC45 OC71 OC72 OA85

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: CR558T - Cibot Radio; Paris

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 245 x 170 x 70 mm / 9.6 x 6.7 x 2.8 inch

• Notes
• CR 558 T (Cibot Radio) est un récepteur portatif à 5 transistors Radiotechnique et une diode germanium OA85 pour la détection.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Jacky Parmentier. See "Data change" for further contributors.
