Kit CR220T
Cibot Radio; Paris
- Country
- France
- Manufacturer / Brand
- Cibot Radio; Paris
- Year
- 1966 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 231175

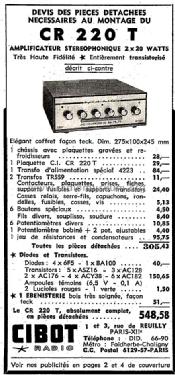

Radio-Plan 1966
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 20
- Semiconductors
- AC128 AC128 AC128 AC176 AC176 ACY38 ACY38 ACY38 ACY38 AC182 AC182 AC182 AC182 AC182 AC182 ASZ16 ASZ16 ASZ16 ASZ16 ASZ16
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 40 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Kit CR220T - Cibot Radio; Paris
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 275 x 100 x 245 mm / 10.8 x 3.9 x 9.6 inch
- Notes
-
Coffret bois & métal façon teck.
Impédance de sortie de 2.5 à 15 Ω.
- Price in first year of sale
- 548.48 FF
- Literature/Schematics (1)
- - - Manufacturers Literature
- Author
- Model page created by Jean Marchal. See "Data change" for further contributors.
