Super Push-Pull 864 (PP864)
Cibot Radio; Paris
- Country
- France
- Manufacturer / Brand
- Cibot Radio; Paris
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 140388
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 24 cm = 9.4 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super Push-Pull 864 - Cibot Radio; Paris
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 600 x 300 x 270 mm / 23.6 x 11.8 x 10.6 inch
- Notes
-
Gammes d'ondes: OC 16 à 51 m, PO 185 à 580 m, GO 715 à 2000 m, bande étalée de 42 à 51 m. Étage de sortie Push-Pull, étage haute fréquence. Tonalité réglable. Prises Pick-up et HP supplémentaire.
Cadran de teinte orée avec garniture miroir, réglage par volant giroscopique.
Ebénisterie en noyer verni avec filets de marquetterie en sycomore. Décor laqué ivoire et brun.
- Price in first year of sale
- 12,500.00 FRF
- Source of data
- -- Original prospect or advert
- Mentioned in

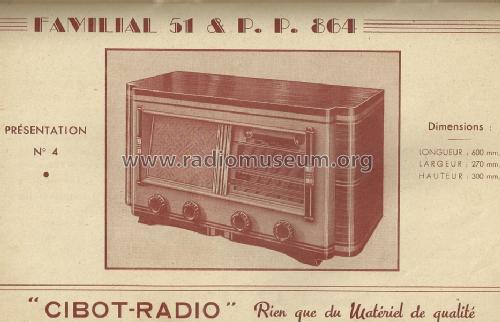

- - - Manufacturers Literature (Catalogue Cibot-Radio, ca. 1951)
- Literature/Schematics (1)
- Radio-Constructeur et dépanneur 1951
- Author
- Model page created by Eddy Rischmann. See "Data change" for further contributors.
