Univers

Cibot Radio; Paris

Data
Forum
Pictures
Collections

  • Year
  • 1961 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 289705

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • Dry Batteries / 2 x 4,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.7 cm = 5 inch
  • Power out
  • 0.4 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Univers - Cibot Radio; Paris
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 290 x 200 x 95 mm / 11.4 x 7.9 x 3.7 inch
  • Notes

  • 5 gammes d'ondes :

    • OC1 de 13,33 à 32,8 m
    • OC2 de 31,70 à 71,4 m
    • OC3 de 68,30 à 178,5 m
    • PO
    • GO

    Clavier 6 touches. Coffret bois gainé et façade plastique.

  • Mentioned in

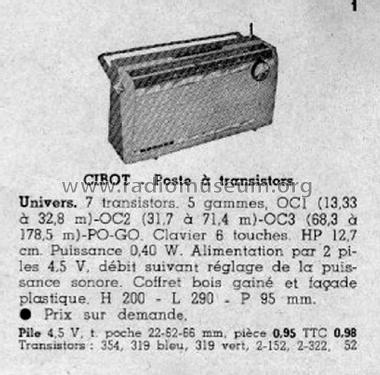

  • -- Original prospect or advert
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
