- Country
- France
- Manufacturer / Brand
- Clarville (CSF); Paris, Levallois-Perret
- Year
- 1968
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 111356

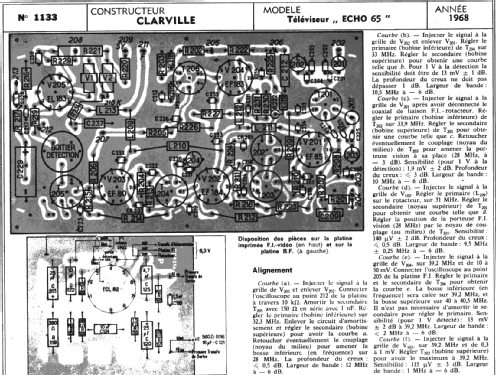

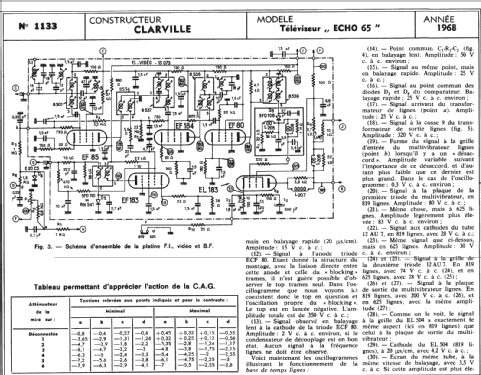

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Valves / Tubes
- ECC189 ECF801 EF85 EF183 EF184 EF80 EL183 ECF80 ECL85 12AU7 EL504 DY86 EY88 unknown_Tube
- Number of Transistors
- 2
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Echo 65 - Clarville CSF; Paris,
- Shape
- Tablemodel, with any shape - general.
- Notes
- 2 Transistors and 6 Diodes. Tube image 65 cm.
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
