- Country
- France
- Manufacturer / Brand
- Clarville (CSF); Paris, Levallois-Perret
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 322642
Vue avant restauration

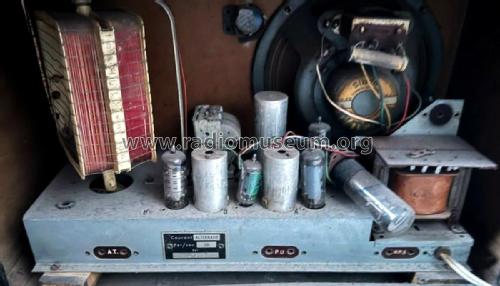

Vue intérieur avec position des lampes

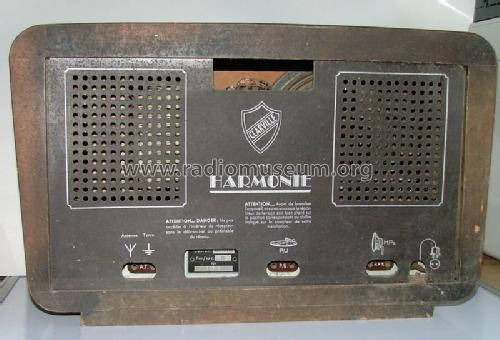

Vue du carton de dos
Vue du clavier de 11 touches
Vue de face avant restauration
Dépliant ca. 1955
leboncoin.fr/ad/collection/2767456132
leboncoin.fr/ad/collection/2767456132
- Number of Tubes
- 6
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Harmonie - Clarville CSF; Paris,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 490 x 300 x 220 mm / 19.3 x 11.8 x 8.7 inch
- Notes
-
4 gammes d'ondes. Contre-réaction BF. Cadre antiparasite à air blindé et orientable. Clavier 11 touches.
- Mentioned in
- -- Original prospect or advert
- Other Models
-
Here you find 209 models, 181 with images and 59 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Clarville (CSF); Paris, Levallois-Perret
Collections
The model Harmonie is part of the collections of the following members.
