• Country
• France

• Manufacturer / Brand
• Clarville (CSF); Paris, Levallois-Perret

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 275695

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 78 77 43 25Z5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Midget M5 - Clarville CSF; Paris,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 265 x 200 x 145 mm / 10.4 x 7.9 x 5.7 inch

• Notes

• Superhétérodyne miniature 5 lampes, tous courants, cadran lumineux, prise pick-up.

• Price in first year of sale
• 950.00 FRF

• Mentioned in

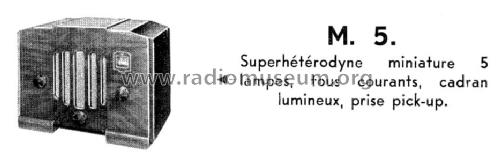

• -- Original prospect or advert (L'Express de Mulhouse, 28.12.1933)

• Literature/Schematics (1)
• Radio & Phono Matériel, No. 95, Mai 1934

• Other Models

• Here you find 209 models, 181 with images and 59 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
