- Country
- France
- Manufacturer / Brand
- Clarville (CSF); Paris, Levallois-Perret
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 119698
- Number of Tubes
- 6
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Metal case
- from Radiomuseum.org

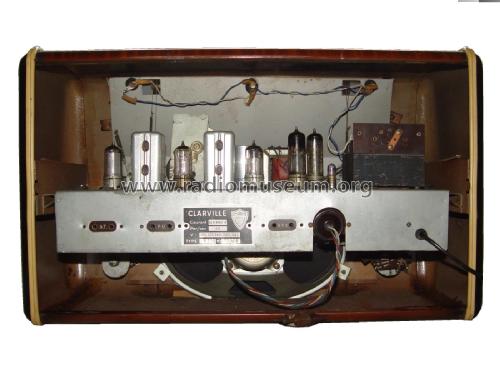

- Model: M114 - Clarville CSF; Paris,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 570 x 330 x 250 mm / 22.4 x 13 x 9.8 inch
- Notes
-
6 gammes d'ondes dont 3 bandes OC étalées "band spread" :
- GO de 1000 à 2000 m
- PO de 180 à 575 m
- OC de 16 à 47.5 m
- OC1 de 18.9 à 20.8 m
- OC2 de 24.6 à 26.4 m
- OC3 de 47.5 à 50.8 m
Contrôle de tonalité 4 positions. Coffret en métal.
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
- Other Models
-
Here you find 209 models, 181 with images and 59 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Clarville (CSF); Paris, Levallois-Perret
