- Country
- France
- Manufacturer / Brand
- Clarville (CSF); Paris, Levallois-Perret
- Year
- 1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 262588
photo Clarville

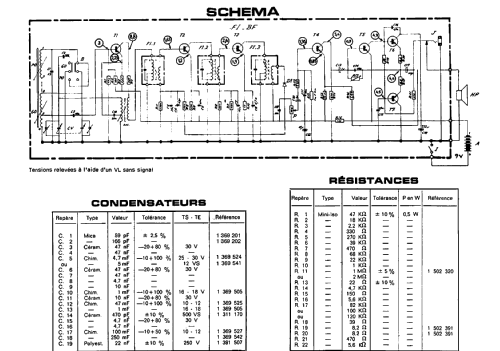

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 480 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 2 x 4.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: PP30 - Clarville CSF; Paris,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 167.5 x 79 x 43 mm / 6.6 x 3.1 x 1.7 inch
- Notes
-
2 gammes d'ondes : PO de 525 à 1620 kHz, et GO de 150 à 265 kHz. Antenne ferrite 100 mm. Étage de puissance push-Pull sans transformateur de sortie. Prise jack pour écouteur extérieur. Impédance du HP : 15 Ω.
Équivalent au Ducretet-Thomson DT192.
- Net weight (2.2 lb = 1 kg)
- 0.255 kg / 0 lb 9 oz (0.562 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Jean Marchal. See "Data change" for further contributors.
