• Country
• France

• Manufacturer / Brand
• Clarville (CSF); Paris, Levallois-Perret

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 130562

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 6M7 6Q7 6M6 unknown_Magic-Eye 5Z4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org

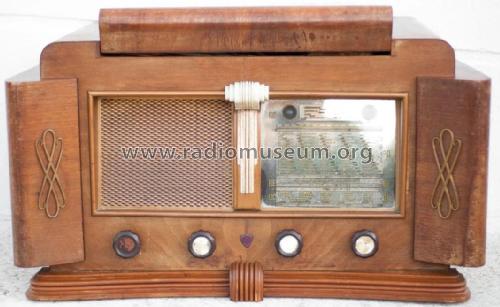

• Model: R [avec 6M6 / 5Z4] - Clarville CSF; Paris,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 590 x 310 x 300 mm / 23.2 x 12.2 x 11.8 inch

• Notes

• Présentation différente de modèle R [EL41]. Jeu de lampes incertain.

• Author
• Model page created by Jean-Paul Moriamé. See "Data change" for further contributors.
