- Country
- France
- Manufacturer / Brand
- Clarville (CSF); Paris, Levallois-Perret
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 75244
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Material
- Wooden case
- from Radiomuseum.org

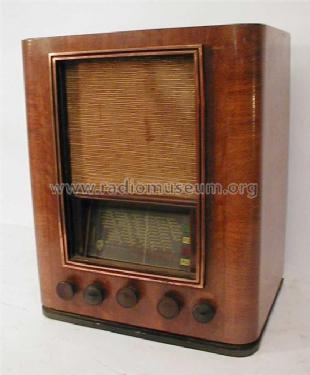

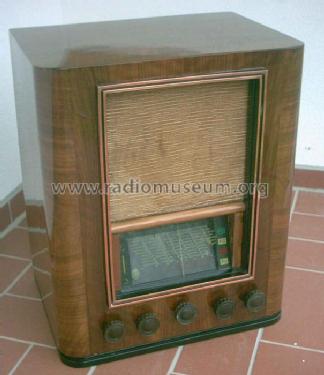

- Model: U76 - Clarville CSF; Paris,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 400 x 490 x 290 mm / 15.7 x 19.3 x 11.4 inch
- Notes
- Le grand livre de la TSF gives an extra tube 1851, which apparently should be the rectifier. But this type is an american pentode (=6AC7).
Le grand livre de la TSF must be in error here.
- Net weight (2.2 lb = 1 kg)
- 15.6 kg / 34 lb 5.8 oz (34.361 lb)
- Source of data
- Le grand livre de la TSF
- Author
- Model page created by Patrice Zeissloff. See "Data change" for further contributors.
