- Country
- France
- Manufacturer / Brand
- Clarville (CSF); Paris, Levallois-Perret
- Year
- 1938 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 110730

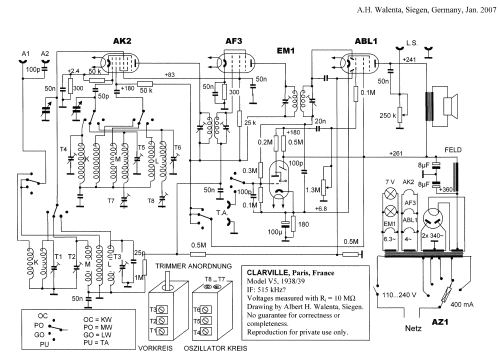

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 515 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: V5 - Clarville CSF; Paris,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 600 x 305 x 300 mm / 23.6 x 12 x 11.8 inch
- Notes
- Besonders dekoratives Gehäuse mit Metallblende.
- Net weight (2.2 lb = 1 kg)
- 10.7 kg / 23 lb 9.1 oz (23.568 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Albert Walenta. See "Data change" for further contributors.
