• Country
• France

• Manufacturer / Brand
• Comix (brand) Importateur; Paris

• Year
• 1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 236366

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

• Number of Transistors

• Semiconductors
• ГТ309 ГТ309 ГТ309 МП41 МП41 МП41 МП41

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 0.15 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

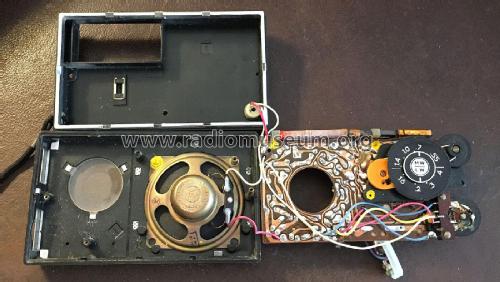

• Model: Comix 402 - Comix brand Importateur; Paris

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 140 x 80 x 41 mm / 5.5 x 3.1 x 1.6 inch

• Notes

• Export version of "Postbox 451, Sverdlovsk" works Nejva {Нейва} [Neywa] 402.
