• Country
• France

• Manufacturer / Brand
• Comptoir MB Radiophonique (M.B.); Paris

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 151652

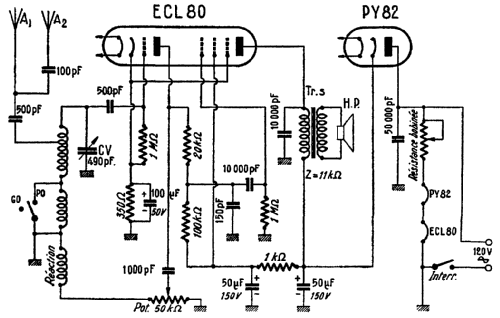

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECL80 PY82

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: HP451 - Comptoir MB Radiophonique M.B.

• Dimensions (WHD)
• 170 x 160 x 85 mm / 6.7 x 6.3 x 3.3 inch

• Notes
• Détectrice à réaction, coffret gainé,nom de récepteur en 1954 "HP 451" et "RPL 451" en 1956

• Literature/Schematics (1)
• Le Haut Parleur 1954

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
