• Country
• France

• Manufacturer / Brand
• Comptoir MB Radiophonique (M.B.); Paris

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 135707

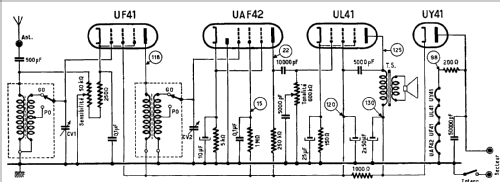

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UF41 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Material
• Wooden case

• from Radiomuseum.org

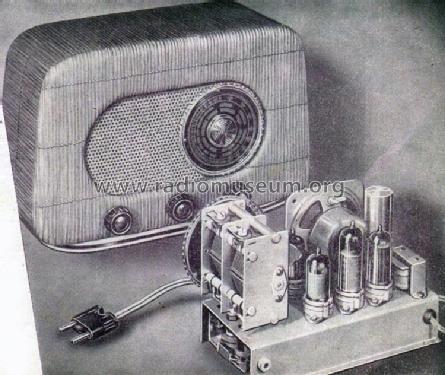

• Model: RPL 651 - Comptoir MB Radiophonique M.B.

• Dimensions (WHD)
• 260 x 180 x 110 mm / 10.2 x 7.1 x 4.3 inch

• Notes
• Tous courants, amplification directe, ébénisterie avec gainage.

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
