• Country
• France

• Manufacturer / Brand
• Comptoir MB Radiophonique (M.B.); Paris

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 261135

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 220 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known. / Ø 12 cm = 4.7 inch

• Material
• Bakelite case

• from Radiomuseum.org

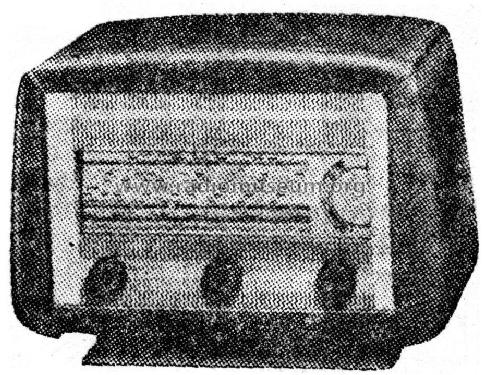

• Model: Super HP887 - Comptoir MB Radiophonique M.B.

• Dimensions (WHD)
• 270 x 200 x 160 mm / 10.6 x 7.9 x 6.3 inch

• Notes

• Le boîtier existe en 3 couleurs : Brun, Noyer, Rouge et Blanc.

  Le bloc d'accord est l'AF47 de SFB.

• Price in first year of sale
• 10,226.00 FRF

• Literature/Schematics (1)
• Le Haut-Parleur

• Author
• Model page created by Jean Marchal. See "Data change" for further contributors.
