- Country
- Sweden
- Manufacturer / Brand
- Stern & Stern (Concerton / Conserton), S&S; Stockholm
- Year
- 1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 146261
Click on the schematic thumbnail to request the schematic as a free document.

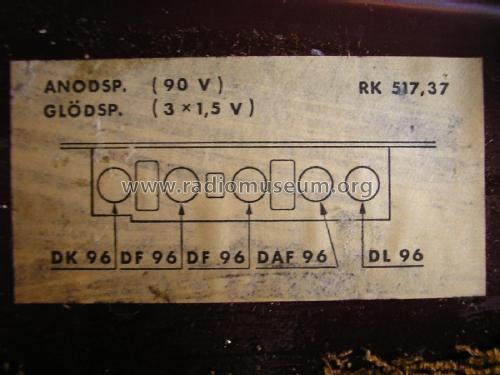

- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: B1505 - Stern & Stern Concerton /
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 264 x 202 x 88 mm / 10.4 x 8 x 3.5 inch
- Notes
- Price not including batteries.
- Net weight (2.2 lb = 1 kg)
- 2.6 kg / 5 lb 11.6 oz (5.727 lb)
- Price in first year of sale
- 175.00 SEK
- Source of data
- -- Original prospect or advert
