• Country
• Sweden

• Manufacturer / Brand
• Stern & Stern (Concerton / Conserton), S&S; Stockholm

• Year
• 1958 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180309

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EF85 EM80 EABC80 EL86 EL84 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

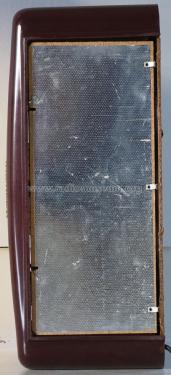

• Model: Concerton MD3530A/19 - Stern & Stern Concerton /

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 530 x 330 x 220 mm / 20.9 x 13 x 8.7 inch

• Notes
• Long Wave from 1200 - 2000 m, Broadcast 200 - 550 m, Short Waves 25 - 52 m and FM 87.5 - 100 MHz.

• External source of data
• David Rydén, Sweden

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.

• Other Models

• Here you find 395 models, 224 with images and 173 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
