• Country
• Sweden

• Manufacturer / Brand
• Stern & Stern (Concerton / Conserton), S&S; Stockholm

• Year
• 1928

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 134620

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• E415 E415 B405 V70_Dario

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

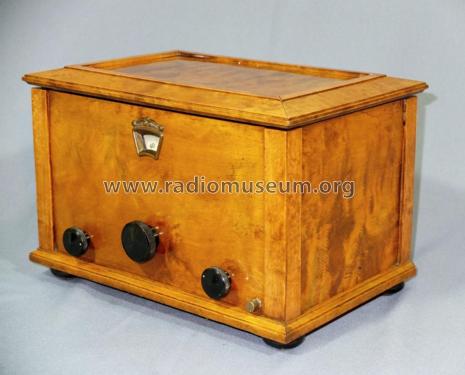

• Model: Concerton III V - Stern & Stern Concerton /

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 330 x 280 x 260 mm / 13 x 11 x 10.2 inch

• Notes

• Das Gerät hat im unteren Teil ein Netzteil mit der Dario V70 als Glimmgleichrichterröhre.

  Durch die kompakte Bauweise wäre eine herkömmliche Gleichrichterröhre wahrscheinlich zu sehr thermisch belastend und belastet.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Source of data
• -- Original-techn. papers.
