• Country
• Sweden

• Manufacturer / Brand
• Stern & Stern (Concerton / Conserton), S&S; Stockholm

• Year
• 1962 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 248429

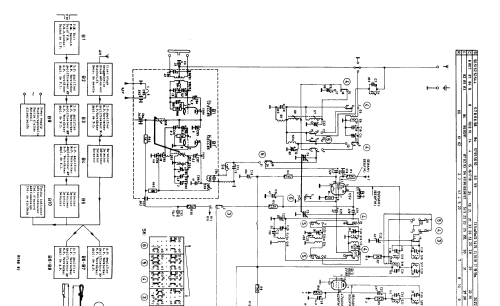

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECH81 EF89 EBF89 EAA91 EL84 EL84 ECC83 ECC85 EZ80 EM80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Conserton Lady MD5510 - Stern & Stern Concerton /

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 566 x 278 x 233 mm / 22.3 x 10.9 x 9.2 inch

• Notes

• Röhrenbestückter 4-Wellen-Rundfunkempfänger.

  Lautsprecher:
  2 x Philips AD 3700 AM (Durchmesser: 7 Inch)
  1 x Philips AD 3460 AM (Oval: 4 x 6 Inch),
  Impedanz: 800 Ohm

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
