- Country
- Sweden
- Manufacturer / Brand
- Stern & Stern (Concerton / Conserton), S&S; Stockholm
- Year
- 1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 163058
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- AC/DC-set / AC: 120; 130; 220 or DC: 120 or 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: U5086 - Stern & Stern Concerton /
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 888 x 750 x 360 mm / 35 x 29.5 x 14.2 inch
- Notes
-
Silicon rectifier. Price not including recordplayer/changer.
Supply voltages:
- 120, 130, 220 VAC or 120 VDC when the receiver includes the inverter AG6001/120
- 120, 130, 220 VAC or 220 VDC when the receiver includes the inverter AG6001/220.Weight without record player.
- Net weight (2.2 lb = 1 kg)
- 26 kg / 57 lb 4.3 oz (57.269 lb)
- Price in first year of sale
- 895.00 SEK
- Source of data
- -- Original prospect or advert
- Mentioned in

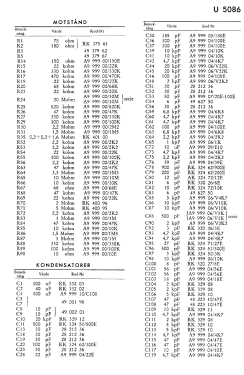

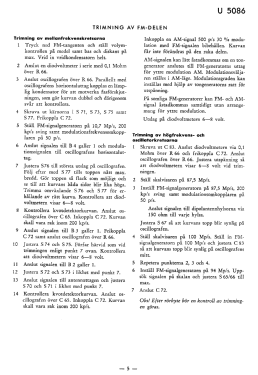

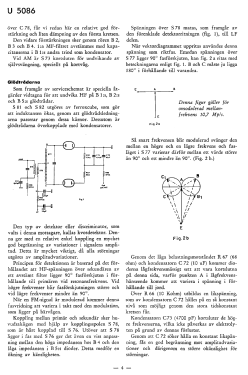

- - - Manufacturers Literature (Stern & Stern service data 1956)
