- Country
- Sweden
- Manufacturer / Brand
- Stern & Stern (Concerton / Conserton), S&S; Stockholm
- Year
- 1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 146289

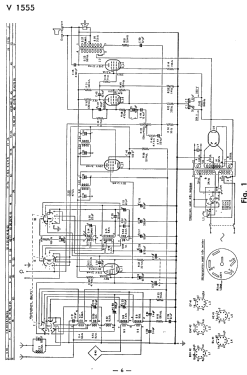

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: V1555 - Stern & Stern Concerton /
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 410 x 316 x 308 mm / 16.1 x 12.4 x 12.1 inch
- Notes
- Tablemodel with a recordplayer under lid on top. Price includes Philips recordplayer AG 2002 R.
- Net weight (2.2 lb = 1 kg)
- 11.9 kg / 26 lb 3.4 oz (26.211 lb)
- Price in first year of sale
- 435.00 SEK
- Source of data
- -- Original prospect or advert
- Mentioned in

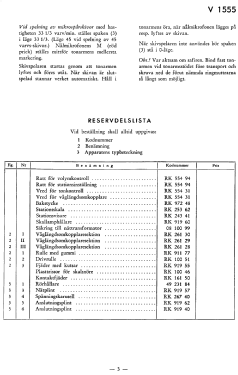

- - - Manufacturers Literature (Stern & Stern service documentation from 1954-55)
- Other Models
-
Here you find 395 models, 224 with images and 173 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Stern & Stern (Concerton / Conserton), S&S; Stockholm
