- Country
- Sweden
- Manufacturer / Brand
- Stern & Stern (Concerton / Conserton), S&S; Stockholm
- Year
- 1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 146288
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: V555 - Stern & Stern Concerton /
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 405 x 280 x 290 mm / 15.9 x 11 x 11.4 inch
- Notes
- Tablemodel with a recordplayer under lid on top. Price includes Philips recordplayer AG 2002 R.
- Net weight (2.2 lb = 1 kg)
- 8.8 kg / 19 lb 6.1 oz (19.383 lb)
- Price in first year of sale
- 410.00 SEK
- Source of data
- -- Original prospect or advert
- Mentioned in

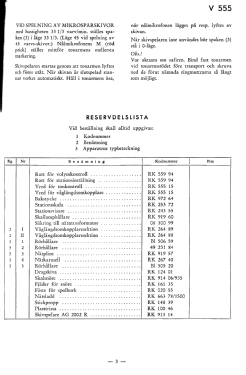

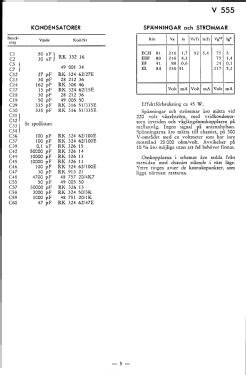

- - - Manufacturers Literature (Stern & Stern service documentation from 1954-55)
