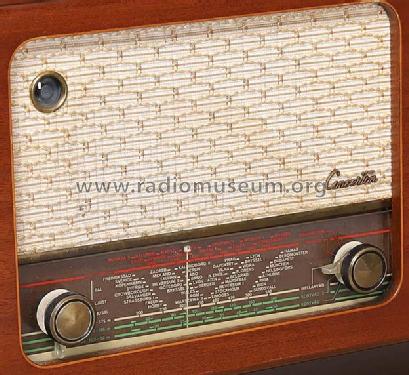

V565

Stern & Stern (Concerton / Conserton), S&S; Stockholm

Data
Forum
Pictures
Collections

  • Year
  • 1954
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 146271

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: V565 - Stern & Stern Concerton /
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 784 x 743 x 380 mm / 30.9 x 29.3 x 15 inch
  • Notes

  • Price not including recordplayer/changer.

    Same chassis as Concerton V515. For alignment and other service, please refer to the service documentation for V515.

    The speaker is Philips 9770X with R=3.3 ohm.

  • Net weight (2.2 lb = 1 kg)
  • 20.6 kg / 45 lb 6 oz (45.374 lb)
  • Price in first year of sale
  • 495.00 SEK
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • - - Manufacturers Literature (Stern & Stern service documentation from 1954-55)
