- Country
- Sweden
- Manufacturer / Brand
- Stern & Stern (Concerton / Conserton), S&S; Stockholm
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 135087
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 136 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 127; 140; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org

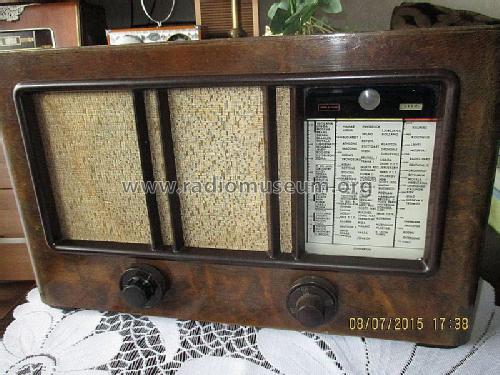

- Model: Concerton V6 - Stern & Stern Concerton /
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 450 x 250 x 210 mm / 17.7 x 9.8 x 8.3 inch
- Price in first year of sale
- 280.00 SEK
- Source of data
- -- Original prospect or advert
- Mentioned in

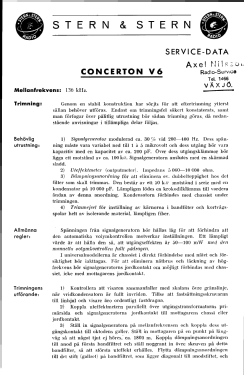

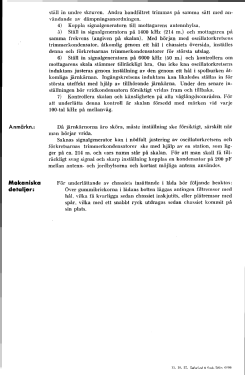

- - - Manufacturers Literature (Stern & Stern service data 1937)
