• Country
• France

• Manufacturer / Brand
• Continental Edison, Compagnie Continentale Édison; Paris

• Year
• 1970

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 157748

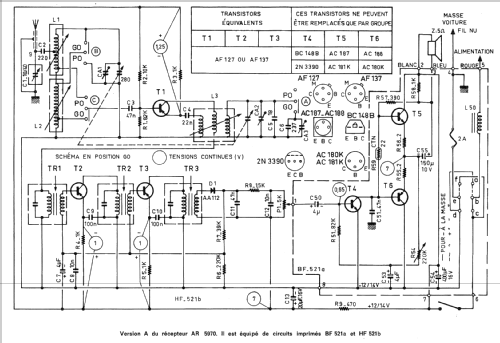

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N3393 2N3393 2N3393 2N3390 AC181 AC180

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org
• Model: Autocollant AR 5970 - Continental Edison, Compagnie

• Shape
• Miscellaneous shapes - described under notes.

• Notes

• Das Gerät wird auf dem Amaturenbrett montiert. Es hat ein Metall-/Kunststoffgehäuse wobei der Metallkörper zur Kühlung der Endstufe genutzt wird.

  Équivalent au Sonora Autocollant-Miniboy AR5970.

• Literature/Schematics (1)
• Schémathèque Sorokine (SRK) (Sorokine 74)

• Author
• Model page created by Hartmut Schmidt. See "Data change" for further contributors.
