• Country
• France

• Manufacturer / Brand
• Continental Edison, Compagnie Continentale Édison; Paris

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 169630

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

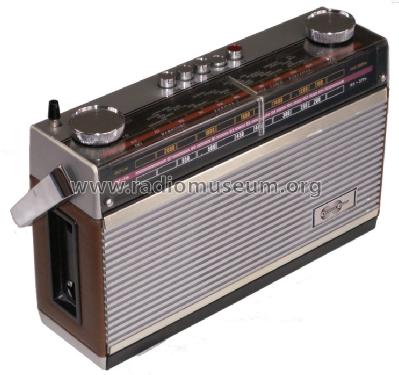

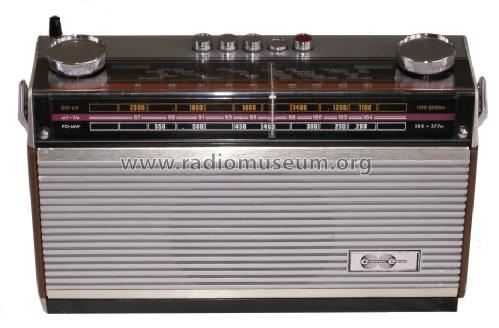

• Model: TR 1491 - Continental Edison, Compagnie

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 180 x 80 mm / 11 x 7.1 x 3.1 inch

• Notes
• TR1491 is a medium range good looking receiver with 7 Silicon transistors and 2 Germanium in the audio amp. The FM tuner is using printed coils which is quite unusual in this kind of receiver, as a consequence it is impossible to have a good calibration over the complete 87 to 104MHz band ... The overall performance is acceptable.

• Net weight (2.2 lb = 1 kg)
• 1.420 kg / 3 lb 2 oz (3.128 lb)

• Author
• Model page created by Serge Laffont. See "Data change" for further contributors.
