- Country
- Germany
- Manufacturer / Brand
- Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz
- Year
- 1953/1954
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 19416

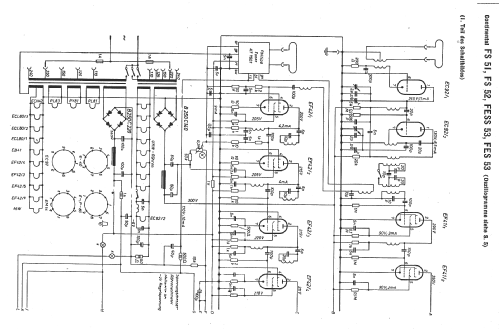

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 30
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Other Combination - see Notes
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: FESS53 - Continental-Rundfunk GmbH
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 1560 x 1010 x 600 mm / 61.4 x 39.8 x 23.6 inch
- Notes
- Gelistete Röhren = Rundfunkteil. Bildröhre: MW43-43. 11 TV-Kanäle im VHF-Bereich. Wahlweise mit Plattenwechsler oder AEG-Magnetophon.
- Price in first year of sale
- 3,250.00 DM
- External source of data
- Erb
- Source of data
- Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 2, Ernst Erb
