• Country
• Germany

• Manufacturer / Brand
• Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19543

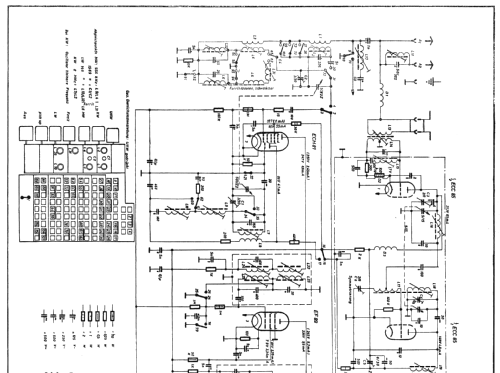

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Imperial J 299W - Continental-Rundfunk GmbH

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 575 x 360 x 265 mm / 22.6 x 14.2 x 10.4 inch

• Notes
• AM-ZF auch 454 kHz.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 299.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
