• Country
• Germany

• Manufacturer / Brand
• Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19546

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EBF80 EM80 EABC80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 472* kHz

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

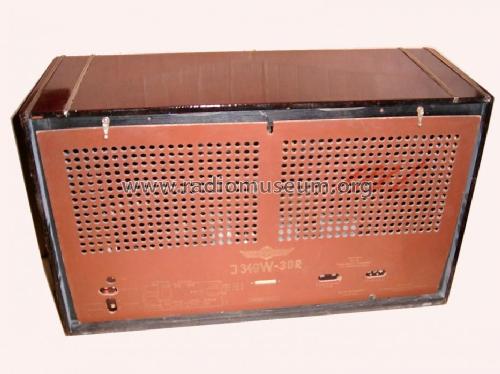

• Model: Imperial J 349-3DR - Continental-Rundfunk GmbH

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 620 x 380 x 275 mm / 24.4 x 15 x 10.8 inch

• Notes
• Raumklang.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 378.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 2, Ernst Erb
