Imperial Maruf J506W Stereo

• Country
• Germany

• Manufacturer / Brand
• Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20560

• Picture
• Schematics

Previous Next

Previous Next

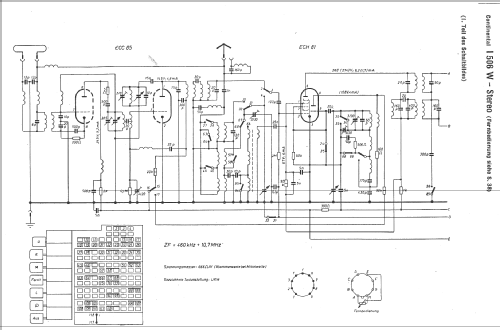

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM80 EF86 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt

• Loudspeaker
• 5 Loudspeakers

• Power out
• 15 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

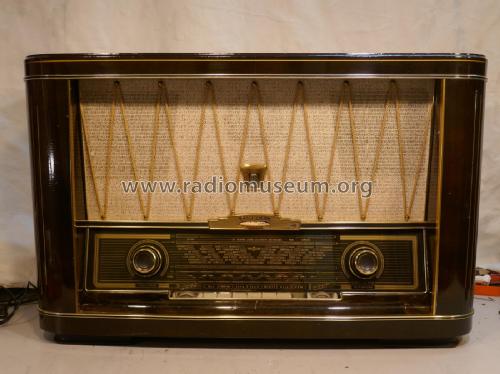

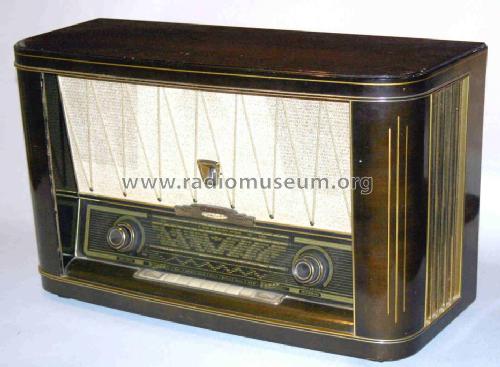

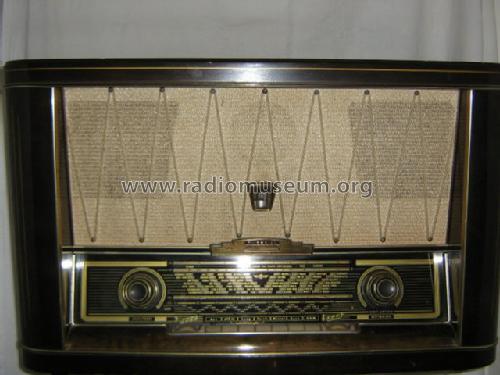

• Model: Imperial Maruf J506W Stereo - Continental-Rundfunk GmbH

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 690 x 415 x 280 mm / 27.2 x 16.3 x 11 inch

• Notes
• Drehbare Ferritantenne.

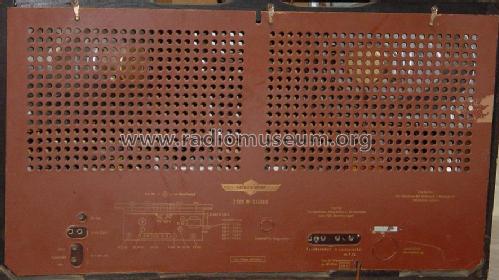

  Im VDRG-Handbuch 1956/57 wird das Modell nur als Imperial 506 Maruf beschrieben. Die Rückwand nennt Imperial J 506 W - Stereo.
  Der Name Maruf erscheint am Modell nicht.

  Stereo meint hier nicht 2 getrennte Verstärkerkanäle!
  Auszug aus dem Katalog:
  Breitwand-Akustik mit Stereo-Effekt.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Price in first year of sale
• 498.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 143 models, 127 with images and 88 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz
